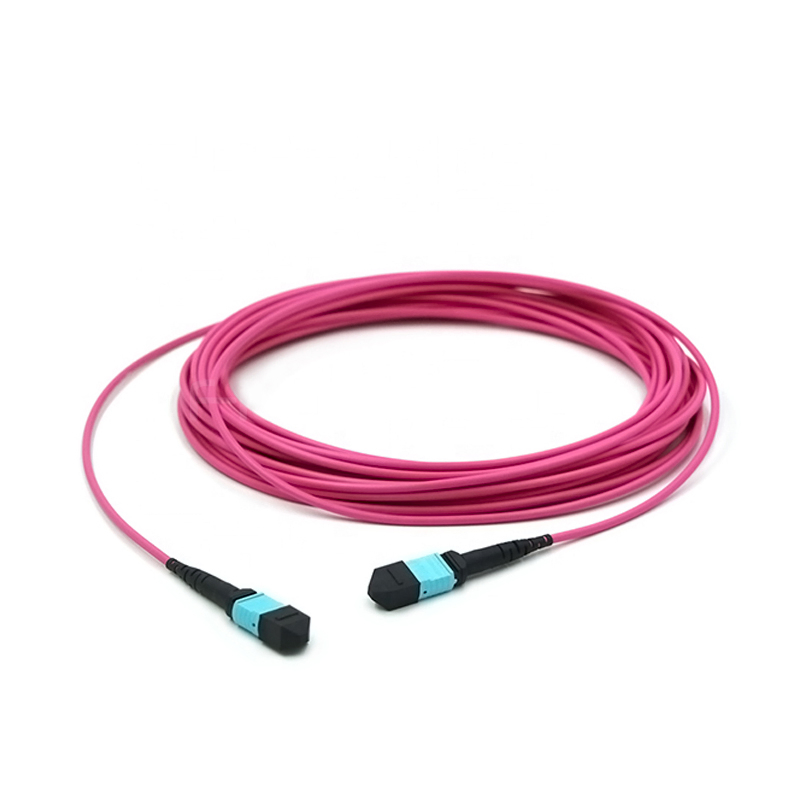

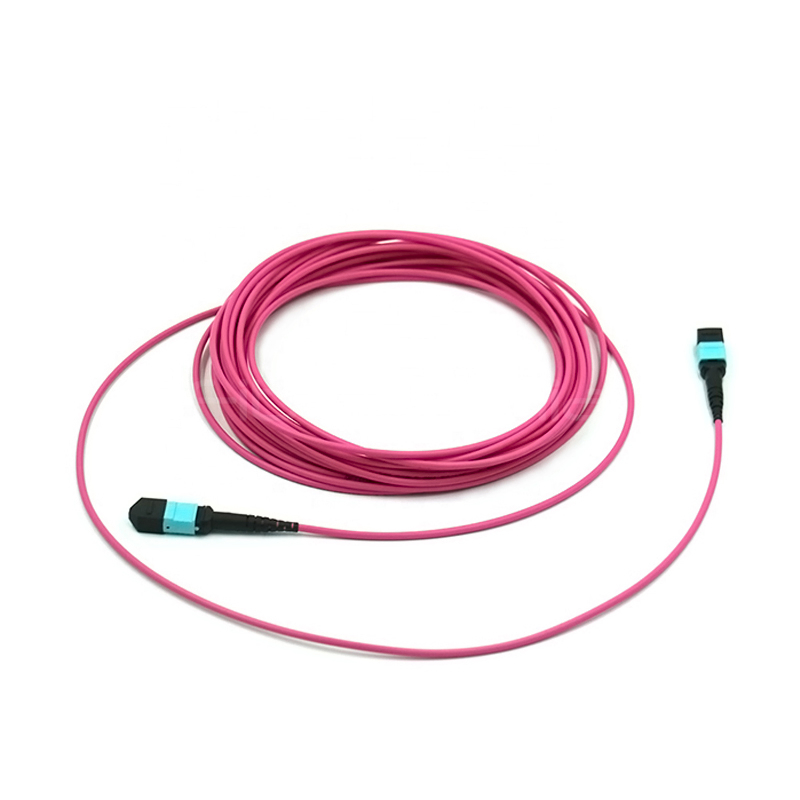

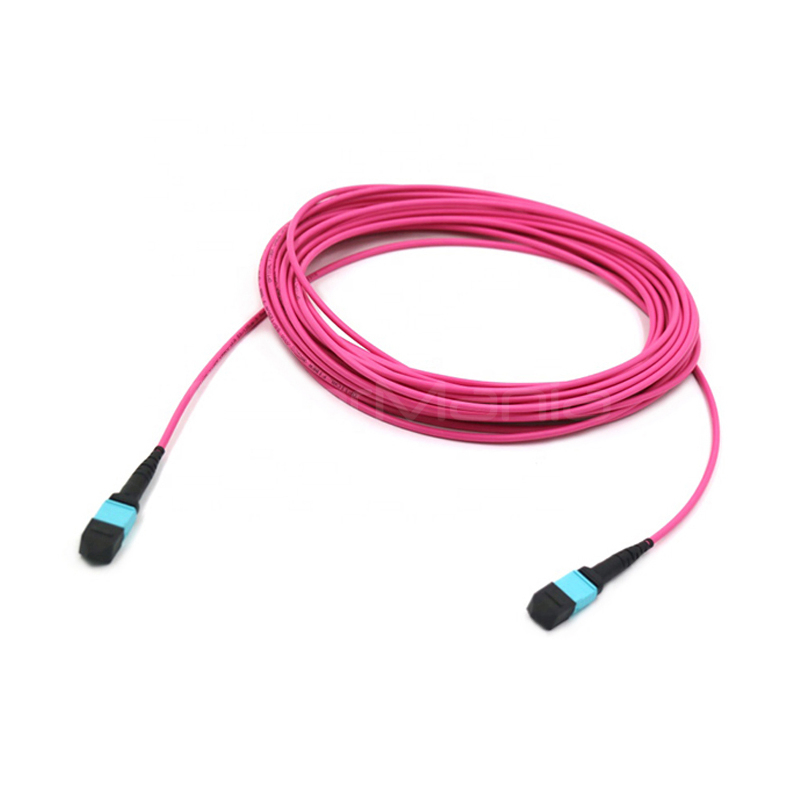

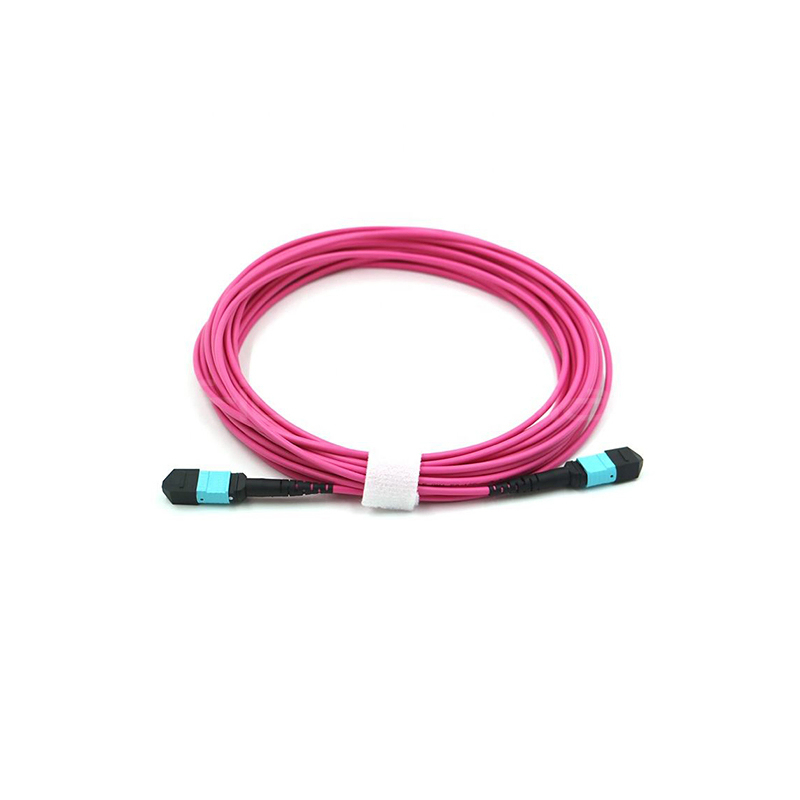

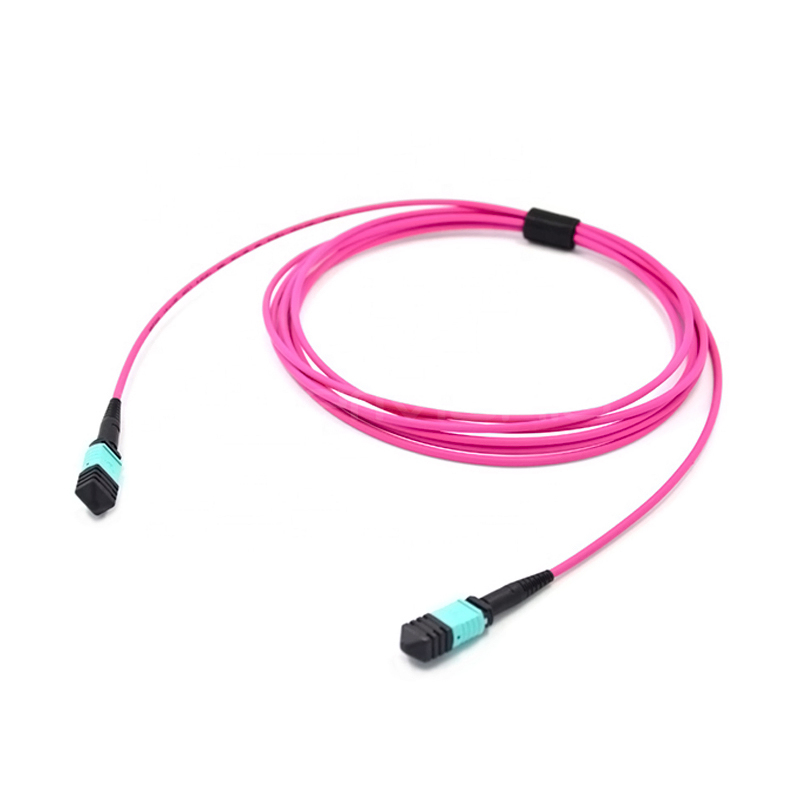

12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD
接触

12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD

最小注文数量 : 10 価格 : 3.8
証明: RoHS, CE, ISO9001 文書: 製品説明書 PDF

詳細情報
接続構造: MPOからMPOへ 材料の形状: 丸いワイヤー
横方向の圧力が許可されました: 100（n/100mm）<1000（n/100mm） 許可された引張強度: 100N <1000N
シース材料: PVC/LSZH コネクタタイプ: MPO/MTP
ファイバーモード: OM4 50/125μm 繊維数: 12個の繊維
極性: タイプA 波長: 850nm/1300nm
ケーブルの直径: 3.0mm 挿入損失: ≤0.6dB
返品損失: ≥20dB 減衰850nm: ≤2.3dB/km
減衰 1300nm: ≤0.6dB/km
ハイライト:

OM4 50/125μm MPO Trunk Cable

,

850nm/1300nm Wavelength MPO Fiber Optic Patch Cord

,

3.0mm OD MPO Cable Assembly

製品の説明

12core OM3 OM4 OM5 Elite MPO Trunk Cable Jumper MPO Fiber Optic Patch Cord
MTP/MPO Cable Assemblies, commonly recognized as MTP® Breakout Fiber, are primarily utilized for data distribution patch panels, including plenum applications. FiberMania Cable supplies MTP® breakout cables in single-mode and multimode, employing 12, 24, 48, and 72 fibers. The MTP® fiber cable splits one 12-strand MTP® fiber optic cable into 12 individual SC cables.
Key Features
  • Versatile Fiber Options: Available in single-mode and multimode configurations.
  • Multiple Fiber Counts: Choose from 12, 24, 48, or 72 fibers to suit your requirements.
  • Breakout Design: Each assembly splits one 12-strand MTP® fiber optic cable into 12 individual SC cables, enhancing connectivity options.
  • Fan-Out Styles: Available in both male and female configurations, ensuring compatibility with various setups.
  • Customizable Lengths: Select from a variety of lengths and tube diameters for optimal installation flexibility.
Applications
  • Data Distribution Patch Panels
  • High-Density Networking Environments
  • Plenum Spaces
Specifications
Connector MPO/MTP(Male/Female)
Fiber Mode SM(OS2) | MM(OM1/OM2/OM3/OM4/OM5)
Polishing Type PC | APC | PC
Insertion Loss Typical≤0.30dB Max≤0.75dB Typical≤0.15dB (Elite) Max≤0.35dB (Elite) | Typical≤0.50dB Max≤0.25dB Typical≤0.10dB (Elite) Max≤0.35dB (Elite)
Return Loss ≥50dB ≥55dB(Elite) | ≥60dB ≥65dB(Elite) | ≥35dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Fiber Count 8/12/24/48/72/96/144 Fibers
Cable Jacket PVC/OFNR/OFNP/LSZH
RoHS Compliancy Status Compliant
Quality Testing Program
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 0
IL and RL Testing
Conduct testing on the insertion loss and return loss of cables to verify their reach and ensure stable signal transmission.
3D Interferometer Testing
Evaluate the connectors or ferrules of cables to verify that the apex offset, radius of curvature, and fiber height are within the specified parameters, ensuring a successful connection of fiber optic lines.
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 1
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 2
End-Face Inspection
Examine the connector end face for any scratches, defects, or contamination to ensure the tips remain clean. This practice enhances communication quality and reliability, thereby contributing to network uptime.
Production Equipment
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 3
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 4
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 5
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 6
12 Fibers OM4 50/125μm MPO Trunk Cable with 850nm/1300nm Wavelength and 3.0mm OD 7
Why Choose FiberMania?
Our MTP/MPO Cable Assemblies are manufactured to the highest standards, ensuring durability and exceptional performance. With a commitment to quality and customer satisfaction, FiberMania is your trusted partner for fiber optic solutions.
