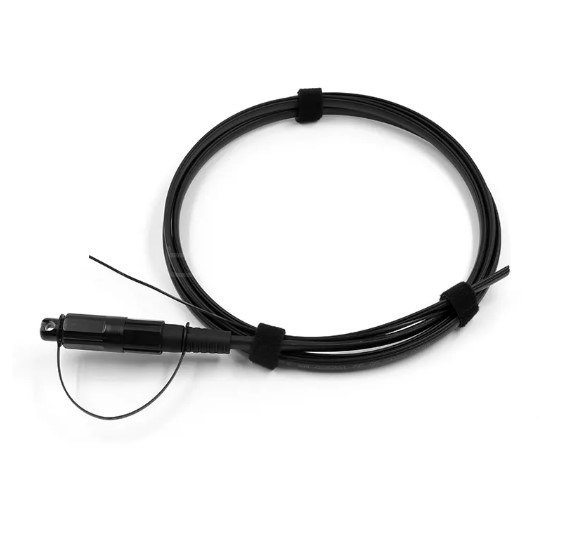

OptiTap SC/APC Outdoor Toneable Flat Drop Cable, OS2 G.657.A1 Single Mode, PE Jacket, 3M

製品の説明

The OptiTap SC/APC Outdoor Toneable Flat Drop Cable delivers reliable single-mode fiber performance for demanding environments. Built with G.657.A1 OS2 fiber and a durable 4.5×9.8mm PE jacket, this 3-meter flat drop cable ensures stable transmission, low insertion loss, and long-term durability in harsh conditions.

Equipped with robust OptiTap SC/APC connectors featuring bayonet locking and IP67 protection, it provides waterproof, dustproof, and corrosion-resistant performance. Ideal for outdoor FTTH deployment, military communications, remote wireless base stations, oil fields, video surveillance, and railway control systems.

⚙️ Key Features

• OptiTap SC/APC connectors with rugged bayonet locking

• Single-mode OS2 G.657.A1 fiber, toneable flat drop cable design

• PE jacket (4.5×9.8mm) for superior outdoor protection

• IP67-rated waterproof and dustproof performance

• Low insertion loss ≤0.3dB, repeatable loss ≤0.2dB

• Mechanical life up to 500 mating cycles

• Operating temperature: -10°C to +50°C | Storage: -40°C to +70°C

• Custom cable length, jacket, and connector options available

• 12-month warranty
