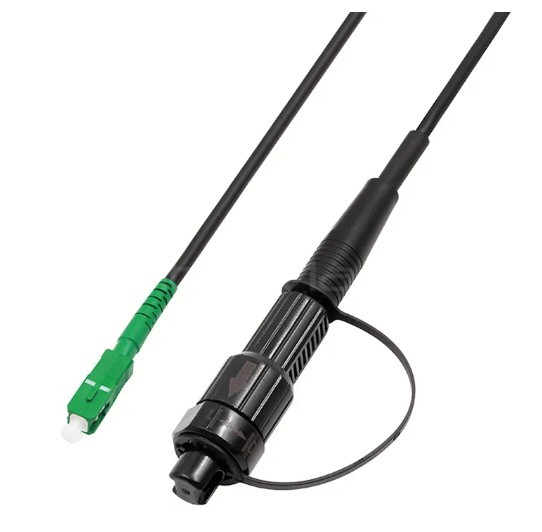

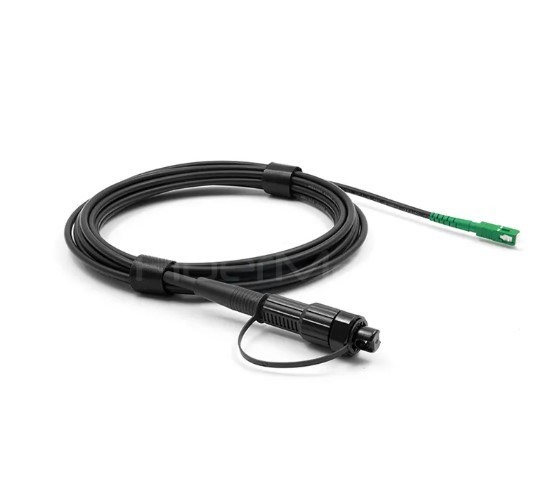

Mini SC/APC to SC/APC Outdoor Simplex Fiber Patch Cord, OS2 9/125, LSZH Jacket

製品の説明

The FiberMania Mini SC/APC to SC/APC Outdoor Simplex Fiber Patch Cord delivers high-performance, weatherproof connectivity for modern telecom and broadband networks. Engineered with OS2 9/125µm single-mode fiber, it ensures low insertion loss and stable signal transmission across long distances.

This patch cord features IP67-rated waterproof and dustproof Mini SC/APC connectors, providing reliable protection against moisture, dust, and corrosion. The flame-retardant LSZH jacket (UL 94V-0) offers enhanced durability, flexibility, and environmental safety, making it ideal for outdoor and industrial deployments.

FiberMania supports OEM/ODM customization, including connector types, jacket materials, and cable lengths to meet diverse project specifications.

⚙️ Key Features

• Mini SC/APC to SC/APC simplex patch cord for outdoor fiber networks

• IP67-rated waterproof and dustproof connectors for harsh environments

• OS2 9/125µm single-mode fiber ensures low insertion loss (≤0.3 dB)

• High repeatability (≤0.2 dB) and 500 mating cycles mechanical life

• LSZH jacket with flame-retardant UL 94V-0 rating, RoHS compliant

• Wide operating temperature range: -40°C to +70°C

• Compatible with ODVA system standards, easy plug-and-play installation

• Customizable length, jacket material, and connector type available
